The role of intraoperative videoangiography in aneurysm surgery—a comparative study from a tertiary care hospital

Abstract

Background

Indocyanine green (ICG) is a near-infrared (NIR) fluorescent dye. After intravenous injection, it reaches the vessels of the brain within 30 s. A real-time visualization of the cerebral vasculature is possible.

Results

The infarction rate and the postoperative rebleed rate in the pre-ICG era group were higher than in the ICG era.

Conclusion

Intraoperative ICGVA is a safe and effective method to confirm the exclusion of the clipped aneurysm from the circulation. It also helps to assess the patency of the surrounding vessels.

Introduction

Indocyanine green dye, a negatively charged tricarbocyanine dye, was approved for clinical use in 1956. The dye is excreted unaltered via the liver. Its administration is safe with a very minimal incidence of major or minor complications. After intravenous injection, it gets quickly bound to plasma-proteins and reaches the brain vessels within 30 s. A real-time visualization of vessel flow and aneurysm filling within the surgical field is the greatest advantage of the dye [1, 2]. This property of Indocyanine green dye is being widely utilized intraoperatively to assess the completeness of exclusion of aneurysm from the circulation and inadvertent clipping of parent vessels and perforators which clinically translates as reduced rebleeding and ischemic stroke rates [3, 4]. The purpose of our study was to know the impact of ICG videoangiography on the operative outcome of aneurysm surgery.

Methods

This was a prospective study conducted in the Department of Neurosurgery, Sher-I-Kashmir institute of medical sciences (SKIMS), Kashmir, India. The study period lasted from January 2014 to December 2018 (5 years). All patients who were operated for aneurysm clipping were enrolled in this study. There were 332 patients in this arm. Each patient was assessed for perioperative stroke, defined here as a new permanent or transient neurological deficit within 72 h of surgery with an appropriate image correlate on CT scan. This group was compared with the 5-year (2009–2013) data of our patients who were operated by us in the department when an intraoperative ICG facility was not available to us. We retrospectively retrieved the records of these patients. There were 353 patients in this arm. The stroke rates and rebleed rates within the hospital for both these groups were compared. As per the protocol in our department, all posterior circulation aneurysms are coiled; hence, the study included only anterior circulation aneurysms. This study was approved by the Institutional Ethics Committee of Sher-i-Kashmir Institute of Medical Sciences, under reference number 14/2014 of IEC-SKIMS. A written consent to participate in the study was taken from the patient or next of kin. For indocyanine green videoangiography (ICG-VA), a bolus of 25 mg of ICG dye (Aurogreen, Aurolab, Madurai) was injected via a peripheral vein. For visualization, the Zeiss Pentero operating microscope (Carl Zeiss GmbH) with integrated near-infrared ICG angiography (IR800) was used. Intraoperative ICG-VA was performed in all patients without complications. In cases in which parent or branching vessel stenosis or residual aneurysm necks were identified with ICG-VA, the clip position was changed or additional clips were applied and another ICG-VA was performed. We calculated the adequacy of our sample size by logging on to www.sealedenvelope.com. The statistical significance level, alpha, was kept at 5% (0.05) and adequate power for a trial was kept at 0.9 (90%). The sample size needed to obtain the results was 130 in each arm as shown in Fig. 1. We had more than 300 patients in each arm. Our sample size was more than adequate.

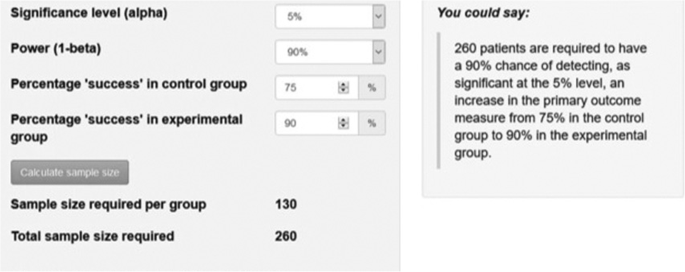

Fig. 1
figure1

Shows the minimal sample size required to draw inference

Results

Demography

The mean age of patients in the pre-ICG era and the post-ICG era was 60.3 years and 61.1 years, respectively. A female predominance was seen in both the study groups. Both groups were comparable in their demographic and clinical profile (Table 1).

Table 1 Showing the demographics and clinico-radiological profile of our patients

Surgical procedure and postoperative stroke outcome

In the ICG group, we clipped 364 aneurysms in 332 patients, and in the pre-ICG group, we clipped 381 aneurysms in 353 patients.

The infarction rate in the pre-ICG era group was 5.77.% (22/381), and it was 1.09% (4/364) in the ICG era; the difference was statistically significant (P=0.0005). The clip readjustment rate for maintaining the patency of the distal vessels was 1.92% (7/364) and the clip readjustment rate for achieving complete aneurysm occlusion was 4.67% (17/364). The postoperative rebleed rate was seen in 5 patients of the pre-ICG group and there was no rebleed rate in the ICG group (1.3% vs 0, Table 1).

Discussion

Indocyanine green videoangiography (ICG-VA) has over the last few years become a standard practice of evaluating the blood flow in cerebral vasculature during aneurysm surgery. Also, its utility has broadened to confirming the patency of collateral circulation during surgery for complex vascular and neoplastic lesions of brain and during extracranial-intracranial bypass surgery [1,2,3,4]. In comparison to intraoperative DSA, swiftness of image acquisition is a definite advantage of ICG-VA. This allows the surgeon to manipulate the surgical field during surgery. Another advantage of ICG over DSA is the improved resolution to assess small perforating arteries which translates into reduced postoperative ischemic deficits [5]. As the rates of detecting residual aneurysm dome filling or parent vessel stenosis have markedly increased intraoperatively after the administration of ICG, the rates of repositioning or addition of aneurysm clips have increased [6, 7]. We did not find any difference between clip adjustment rates of different sites of aneurysms after ICG administration which has been noted in other studies also [8]. The incidence of perioperative ischemic stroke in our study did differ significantly between eras, 1.09% for ICG and 5.77% for pre ICG era. In our study, the intraoperative use of ICG made us to reposition the clip in 6.59% (24/364) patients which manifested clinically as a reduced rate of ischemic stroke. In other large surgical series, the clip adjustment rates range between 2% and 38% (Table 2) [4, 8]. The wide variation in clip adjustment rates is because of a low number of patients in some studies, inhomogeneous patient groups, and the non-systematic application of the technique.

Table 2 Literature summary of intraoperative clip adjustment rates after ICG-VA

In our study, the rebleed rates also differed between the two groups. The rebleed rate in the pre-ICG era was 1.3% and no patient in the ICG group had a rebleed from the clipped aneurysm. The difference however was not statistically significant. Same rebleed rates have been reported from follow-up of ISAT trial patients and other studies [20, 21]. The low rebleed rate is because ICGVA allows checking for residual aneurysm filling and repositioning of the clips across the neck of the aneurysm; however, there are aneurysms where ICGVA will show a totally excluded aneurysm but intra-op needle puncture of the aneurysm will aspirate blood as was reported by Roessler et al. [4] in 2 out of 232 patients (0.8%) (false-negative cases). In comparison to intra-op DSA, ICG angiography can be repeated many times during a single surgical procedure as it is easy to perform and carries a very low risk of complication. In contrast, intraoperative DSA is time-consuming, and it interrupts the surgery. However, we do agree that intraoperative DSA remains the most reliable intraoperative tool for excluding an incompletely clipped aneurysm because ICGVA is limited by the field of the operating microscope, presence of clot, calcification, or overlapping blood vessel or brain tissue. All these factors are not an issue in DSA [7, 22]. The purpose of our study was to evaluate the overall outcomes achieved in each era and to highlight the impact of intra-op ICG videoangiography. We found a 1.92% rate of clip replacement due to parent vessel stenosis or perforator occlusion and a 4.67% rate of residual perfusion of the aneurysm dome or neck leading to additional clip application (Figs. 2 and 3). Therefore, we concluded that nearly one in six patients benefits from the use of intraoperative ICGVA. We excluded strokes that were actually due to cerebral vasospasm by only including deficits which occurred within 72 h of surgery with an appropriate imaging correlate. At the same time, we do believe that some patients with subarachnoid hemorrhage would present with vasospasm immediately postoperatively, and therefore, the strokes reported here may include events not directly related to surgical compromise. However, since the two groups were well balanced, we believe that the frequency of such events would have been equal or near equal and hence would cancel each other. All said we do believe that ICGVA is not a replacement for DSA in all cases as intraoperative DSA still has a key role in aneurysm surgery. ICGVA is limited by the field of view of the operative microscope, only the dissected and thus visible vascular structures within the operative field can be visualized, and at times, it is not possible to assess the arteries if obscured by cisternal blood, aneurysm, or aneurysm clip. Also, patients with calcified vessels or partially thrombosed aneurysms are best assessed by intraoperative DSA. However, intraoperative DSA remains itself an imperfect modality with up to 5–8% rate of unexpected vessel stenosis or aneurysm filling compared to the gold standard of postoperative DSA. Literature reports that postoperative imaging, either CTA or DSA, is required to fully evaluate the status of the vessel even after intraoperative DSA [10, 12, 23,24,25]. We follow our patients routinely with postoperative CTA with selective use of postoperative DSA. A combination of intra-op ICG videoangiography and postoperative DSA/CTA is a must in aneurysm surgery to improve patient outcome.

Fig. 2
figure2

a Intra-op photo which shows the aneurysm clip across the neck of Acom aneurysm. b Intra-op photo taken after ICG injection shows non-opacification of the Acom aneurysm with patent surrounding vessels

Fig. 3
figure3

a Intra-op photo which shows the aneurysm clip across the neck of MCA aneurysm. b Intra-op photo taken after ICG injection shows filling of the clipped MCA aneurysm

Strengths and limitations of our study

The robustness of our study lies in the high number of patients. This made us capable to achieve a reliable sensitivity of this technique. The major limitation of our study is that we have not answered a common question whether post-op DSA is warranted for those patients who have a satisfactory intra-op result on ICGVA as we have done post-op DSA only in a limited number of patients.

Conclusion

Intraoperative ICGVA is a safe and effective modality to know about the exclusion of the aneurysm from the circulation and also to maintain the patency of parent vessels and perforators.
