Modified pressure-cooker technique (PCT) using extra-soft Kaneka coils improves embolization of high-grade cerebral arteriovenous malformations: a technical note
Egyptian Journal of Neurosurgery volume 38, Article number: 14 (2023)
Abstract
Endovascular embolization techniques are showing an extraordinary potential to treat patients suffering from complex neurovascular malformations. The embolization with liquid embolic agents via Onyx is a prominent approach to treat arteriovenous malformation (AVM). However, intraoperative reflux of the liquid agents can be very challenging and, thus, is impairing full success of endovascular treatment. A possible technique to prevent intraoperative endovascular reflux is the pressure-cooker technique (PCT) utilizing coils to build a wedge proximal to the AVM. Few modifications of the PCT have been developed in the recent years to improve effectiveness of embolization procedure. Hereby, we present a novel PCT modification utilizing extra-soft Kaneka coils and glue to build well-fitting wedges. After the application of extremely soft bare coils with high trackability, flexibility and crossability, liquid agents can be injected with reduced reflux. We think the pressure-cooker technique with extra-soft Kaneka coils enables more efficient embolization in even farther, tinier and more tortuous target vessels. This technical note presents two illustrative patient cases with treatment-refractory, high-grade cerebral arteriovenous malformations which were successfully treated via embolization with PCT in which the plug was formed with Kaneka coils.
Introduction/Background
While a variety of approaches to treat arteriovenous malformations (AVMs) have been developed, treatment of cerebral AVMs is still a challenging task. Possible treatment plans can contain endovascular embolization, microsurgical resection and/or stereotactic radiosurgical [16]. However, it still remains difficult for physicians to identify accurately the right indications in each individual case [4]. In particular, minimal-invasive endovascular embolization via Onyx is an efficient and promising approach to treat patients with AVMs and dural arteriovenous fistulae (DAVF). This treatment is frequently used in clinical life for different frameworks and for varying target vessels in patients with AVMs. However, the technique must be adapted for the best outcome and for the prevention of harmful complications.
For instance, reflux in endovascular embolization via liquid agents like Onyx can lead to further complications and, as well, to inefficient embolization of the malformation. One prominent technique to prevent reflux of liquid agents is the pressure-cooker technique. The pressure-cooker technique (PCT) was first described by Chapot et al. as a promising technique to prevent intraoperative reflux during embolization of AVMs by forming a plug in the feeding arteries prior to the tip of the embolization catheter with injectable coils and glue [3]. And indeed, several studies reported the benefits of using PCT [1, 7, 8].
Since in large or in high-flow feeders the exact position of the flow coils cannot be controlled after injection we altered the PCT by using coils that can be implanted through a flow-directed microcatheter. The authors of this paper find this variation of the PCT as a beneficial approach to achieve more flexibility while maintaining or even enhancing the efficiency of the procedure.
In this technical note, we describe a reflux-preventing approach via pressure-cooker technique using bare coils and glue based on two clinical cases of AVM patients we have successfully treated.
Clinical presentation
First case

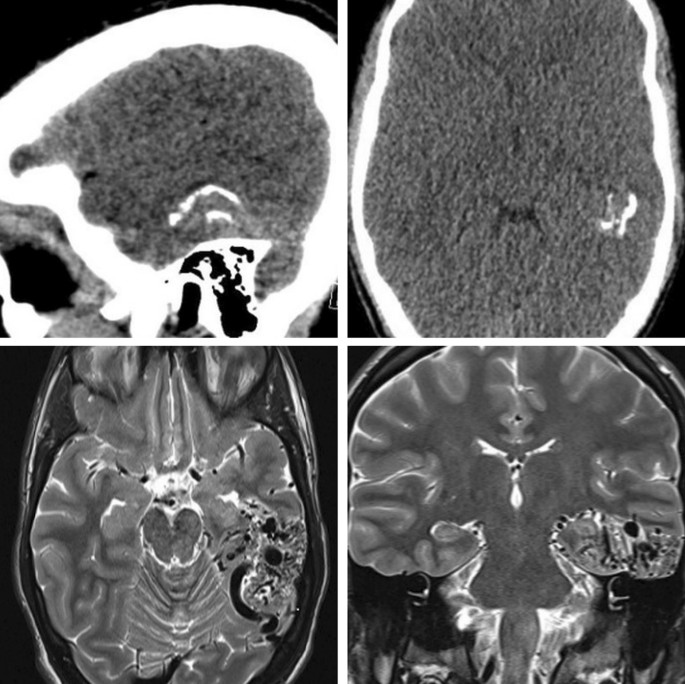

The first patient is a 22-year-old male who became symptomatic for the first time in 2017 through a generalized epileptic seizure. Initially, to clarify the seizure, the patient underwent diagnostic computed tomography (CT), brain magnetic resonance imaging (MRI) and digital subtraction angiography (DSA) in which a high-grade temporal, left-sided AVM (4.5 × 3 × 2 cm, Spretzler-Martin Grade III [15], was diagnosed (Figs. 1, 2). The patient was free of seizures due to medication (Keppra 1 g 1–0–1) until January 2019. In January 2019, the patient was again hospitalized due to a partially complex seizure. Possible reasons for the seizure were missing compliance for taking anti-epileptic medication, lack of sleep or intake of alcohol (positive provocation test). As part of the interdisciplinary neurovascular conference in July 2019, an embolization therapy was recommended which the patient has agreed on.
Second case

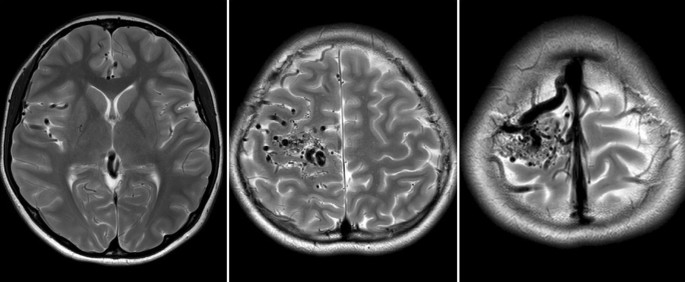

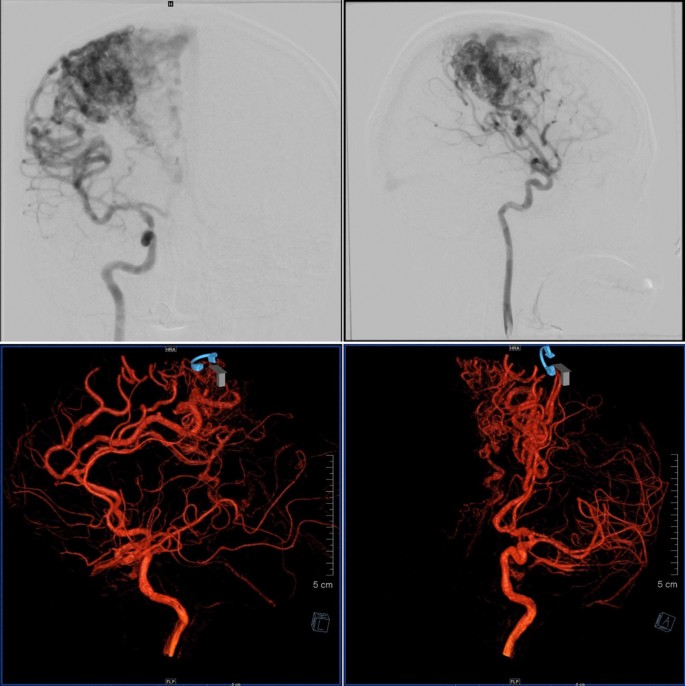

The second patient is a 20-year-old female who became symptomatic due to a first, focal epileptic seizure in the left arm and headaches in 2013. After clinical evaluation and medical imaging, we found a central, high-grade AVM (Spetzler-Martin-Grade 4) in the right hemisphere (Figs. 3, 4). This patient underwent several partial embolization due to the size of the AVM.
Technical description

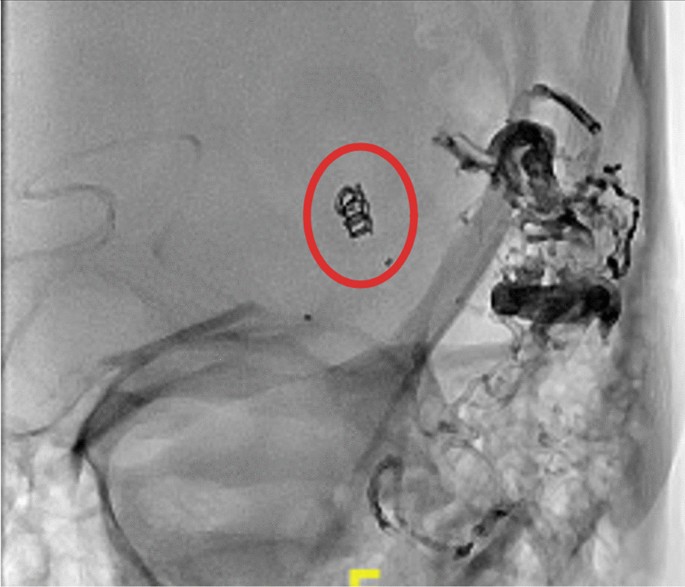

In both patients, the PCT with wedges consisting of Kaneka coils and glue was performed (Fig. 5). Patients were under general anesthesia with endotracheal intubation, and they received full heparinization (70 IU/kg). Transfemoral access was performed with a 6-French (patient 1) and an 8-French (patient 2) guiding catheters via Seldinger technique. Subsequently, we pushed a guiding catheter (Benchmark) through a diagnostic catheter (5-French, 125 cm) with standard wire to probe the left arteria vertebralis. After this, we inserted a further guide catheter (053 Neuron Intracranial access system) through exchange via a standard wire with diagnostic catheter (5-French, 125 cm) to probe the arteria vertebralis on the right side. Then, arteriography-series in posterior-anterior (PA) from lateral and in 3D were captured. Since in large or in high-flow feeders the exact positioning of the flow coils cannot be controlled after injection we altered the PCT by using coils that can be implanted through a flow-directed microcatheter (Fig. 5).
First patient
In the first patient, a micro-wire and a microcatheter (Marathon and Apollo 1.5-French, TIP 1.5 cm) were placed in a dominant feeder as close as possible to the nidus. In the microcatheter injection, a flow to the posteromedial compartment of the nidus was present. Subsequently, a coil-embolization (Kaneka coil 3D, 2.5 mm × 6 mm) and liquid embolization (0.1 ml NBCA 1:1) through a Marathon-microcatheter in proximal position with wedge-building (pressure-cooker technique) were achieved (Fig. 6). Afterward, a further liquid embolization (2.5 ml Onyx 18 and 20) with penetration of the nidus and with closure of the feeders was executed successfully.
Then, we probed further dominant feeders of posterolateral compartment of the nidus via micro-wire and microcatheter (Marathon and Apollo 1.5 French, TIP 1.5 cm). A further liquid embolization injection (1.3 ml Onyx 20 and 18) under flow-arrest with pressure-cooker technique (Kaneka coil 3D, 4 mm × 6 cm and 2 mm × 6 cm) was achieved. In the control-series a complete embolization of the posterior compartment and a major part of the central compartment could be visualized (Fig. 7).
Second patient
In the second patient, several partial embolization without PCT were performed prior to the third and last embolization with PCT via coils (Fig. 8).
In the DSA, the fronto-parietal rest-AVM on the right side showed dominant feeders from the arteria cerebri media and from the arteria cerebri anterior. Thereto, we explored the arteria cerebri media via microcatheter (Marathon-Flow-directed, 162 cm) and micro-wire (Asahi Chikai 10). Patient showed no motoric impairment after provocation test with Lidocaine (20 mg) and Etomidate lipuro (1.0 mg). Then injection of liquid agents (Onyx 18, 1.5 ml) close to the feeders and with moderate penetration of the nidus was performed. After exploration via microcatheter (Apollo 1.5 French, 3 cm) and micro-wire (Asahi Chikai 10), we attempted coil-embolization (Kaneka coil 3D, 3 mm × 3 cm, 3 mm × 6 cm, 4 mm × 6 cm) and liquid embolization (NBCA, 1:1) through microcatheter (Marathon) in proximal position with wedge-building (PCT, Fig. 9). Following liquid embolization (1 ml Onyx20 and 3 ml Onyx18) via microcatheter (Apollo 1.5 French, 3 cm) in distal position with closure of the feeders and with appropriate penetration of the nidus was proceeded. In the DSA, it could be shown that a 30–40% reduction of the AV-shunt flow could be reached (Fig. 10).
Discussion
Several reports have presented the PCT and different modifications of the technique [3, 7, 8, 10]. The pressure-cooker technique showed to be very reliable for intraoperative prevention of reflux of liquid agents in endovascular embolization. In addition, it could be seen that different modifications are performed more efficiently when indications were chosen carefully and when the setting, which is set by the pathology, is giving the right framework for application of the specific PCT modification. We see certain advantages of this modified version of the transarterial PCT:
-
We can reach more into farther and tinier vessels with extra-soft Kaneka coils compared to other wedge-modalities of the PCT
-
Due to the extra-soft configuration, we can place the Kaneka coils more proximal to the nidus than before and, thereto, we reach better embolization performance
-
Due to the extra-soft configuration, we can build wedges with higher density and, thereto, we reduce the collateral damage of healthy vessels by reflux of liquid agents
When to consider transarterial PCT with coiling-wedge modification
The PCT is an efficient approach to prevent endovascular reflux of liquid agents in liquid embolization. However, the different modifications of the PCT are more applicable for certain AVMs and DAVFs. The size, location, intravascular flow-attributes and the surrounding structures, which project on patient symptomology, are important factors to determine the appropriate techniques. We have identified these factors as important indicators for PCT with coiling-wedge modification:
-
In cases of far and/or tiny feeder-vessel structures
-
In cases of large and high-flow feeders in which the exact positioning of the flow coils can be difficult after injection
-
high-grade AVMs (Spetzler-Martin-Grade ≥ 3)
-
hemorrhagic AVMs/DAVFs
Is the usage of detachable microcatheter recommended?
As shown in some reports, the usage of a detachable microcatheter can have several advantages and disadvantages [6, 14]. The detachment can require more physical power than expected and, therefore, lead to unexpected damage of the surrounding structures [12]. However, the usage of detachable microcatheter can help to embolize more efficiently and more completely the surrounding and draining vessels [13].
Conclusions
We found that transarterial embolization via modified pressure-cooker technique (PCT) with one or multiple wedges leveraging extra-soft Kaneka coils enabled successful treatment of patients with high-grade AVMs. In our cases, we presented multiple patients with treatment refractory AVMs which could be successfully treated by utilizing a modern and modified PCT to maximize embolization effect. Thus, the authors consider this modification of the PCT to enhance outcome of treatment refractory high-grade AVM patients.
