Co-existence of persistent primitive trigeminal artery and another primitive carotid-basilar anastomosis associated with segmental agenesis of the ipsilateral internal carotid artery: a case report

Egyptian Journal of Neurosurgery201833:1

https://doi.org/10.1186/s41984-018-0005-8

Received: 9 December 2017

Accepted: 4 April 2018

Published: 2 May 2018

Abstract

Background

Embryologically, the internal carotid artery (ICA) is comprised of seven segments, any of which may be absent. We presented a very rare case of a well-preserved persistent primitive trigeminal artery (PTA), serving as a collateral pathway to the distal internal carotid artery territory, associated with segmental agenesis of the ipsilateral internal carotid artery.

Results

A 47-year-old woman with no relevant previous medical history came to our hospital for a brain checkup. Magnetic resonance angiography revealed focal agenesis of the right ICA involving the cervical, ascending, and horizontal intrapetrous segments. The enlarged ipsilateral PTA mainly supplied the distal segments of the ICA. There was also the possibility of the co-existence of another primitive carotid-basilar anastomosis; however, we could not pursue a detailed evaluation.

Conclusions

We report a rare case of a well-preserved PTA serving as a collateral pathway to the distal ICA territory associated with segmental agenesis of the ipsilateral ICA. Clinical and radiological follow-up are needed.

Keywords

Internal carotid arteryPrimitive carotid-basilar anastomosisPrimitive trigeminal arterySegmental agenesis

Background

Embryologically, from its origin to its termination, the internal carotid artery (ICA) consists of seven segments, comprising the cervical, ascending intrapetrous, horizontal intrapetrous, ascending foramen lacerum, horizontal intracavernous, clinoid, and terminal segments. Each segment is located between embryonic arteries or their remnants and any segment may be absent. This is referred to as focal agenesis and this anomaly usually does not significantly compromise blood supply to the brain [4]. Lee classified the collateral circulation utilized in the presence of segmental agenesis of the ICA as (1) normal anastomotic pathways through the circle of Willis, the most common form; (2) transcranial anastomoses from the external carotid artery; and (3) persistent embryonic vessels [7]. We report a patient with segmental agenesis of the ICA concomitant with an enlarged ipsilateral persistent primitive trigeminal artery (PTA) and another primitive carotid-basilar anastomosis as an infrequent collateral pathway to the distal ICA territory.

Case presentation

A 47-year-old woman with no relevant previous medical history came to our hospital for a brain checkup. Neurological examination showed no abnormalities. Magnetic resonance imaging showed the right PTA, with a flow void coursing postero-laterally between the dorsum sella and the cisternal portion of the trigeminal nerve on axial T2-weighted images (Fig. 1). Magnetic resonance angiography revealed focal agenesis of the right ICA involving the cervical, ascending, and horizontal intrapetrous segments (Figs. 2 and 3). The enlarged ipsilateral PTA mainly supplied the distal segments of the ICA. The lumen of the distal ICA and its branches were normal. The ipsilateral posterior communicating artery and the A1 portion of the contralateral anterior cerebral artery were not seen (Fig. 2). The ipsilateral vertebral artery (VA) was dysplastic and appeared to arise from the ipsilateral common carotid artery (CCA; Figs. 2 and 3). The patient refused further computed tomography (CT) and digital subtraction angiography studies.
Figure 1

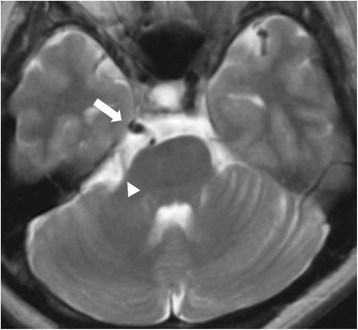

Fig. 1

Magnetic resonance imaging. Axial T2-weighted magnetic resonance imaging showing the right primitive trigeminal artery, a flow void (arrow) coursing postero-laterally between the dorsum sella and the cisternal portion of the trigeminal nerve (arrowhead)

Figure 2
Fig. 2

Magnetic resonance angiography. Stereoscopic images of 3D time-of-flight magnetic resonance angiography showing segmental agenesis of the right internal carotid artery (ICA). The ipsilateral primitive trigeminal artery supplies the distal segments of the ICA and the dysplastic ipsilateral vertebral artery (VA). The arrow indicates the VA union

Figure 3
Fig. 3

Magnetic resonance angiography. Stereoscopic images of 3D time-of-flight magnetic resonance angiography showing the absence of the cervical segment of the right internal carotid artery. The ipsilateral vertebral artery appears to arise from the common carotid artery

Discussion

Primitive carotid-basilar anastomoses that may persist into adulthood, from rostral to caudal, include the trigeminal, otic, hypoglossal, and proatlantal arteries. The PTA is the most common of these, and it is angiographically detected in 0.1–0.2% of cases. It arises from the precavernous portion of the ICA, connects with the basilar artery between the anterosuperior and anteroinferior cerebellar arteries, and runs alongside with the trigeminal nerve. The PTA develops in the embryo at the 4-mm stage and connects the fetal carotid artery to the longitudinal neural artery. At the 7–12-mm stage, the paired longitudinal neural arteries fuse into the basilar artery. The PTA begins to involute and then disappears by the 14-mm stage [5]. If the PTA persists, the basilar artery proximal to the anastomosis is usually hypoplastic. Ordinarily, the blood flow is directed from the ICA into the basilar artery. In patients with probable hemodynamic compromise of the ICA due to, for example, segmental agenesis, the blood flow to the distal ICA territory may be supplied from the vertebrobasilar system via the PTA. Such collateral pathway patterns are rare, and in our review of the literature, we found that only four cases have been described [1, 3, 6].

In our patient, we confirmed segmental agenesis of the right ICA and a poorly developed circle of Willis. However, the presence of a well-developed ipsilateral PTA suggested that the distal portion of the ICA was primarily supplied by this vessel. The pathomechanisms of this type of collateral pathway remain to be elucidated. In our patient, there were no cardiovascular risk factors and the ipsilateral dysplastic VA appeared to communicate with the CCA. This connection might represent another primitive carotid-basilar anastomosis, such as the hypoglossal artery or proatlantal artery. We hypothesize that although the ICA developed, it regressed before involution of the PTA due to a developmental disorder and that this resulted in the maldevelopment of the ipsilateral ICA and VA. In our patient, the distal segments of the ICA were well-supplied by the vertebrobasilar system via the PTA. The co-existence of the PTA with other primitive carotid-basilar anastomoses is quite rare, and only a few cases have been described [8, 9]. Furthermore, to the best of our knowledge, there are no reports of the co-existence of two primitive carotid-basilar anastomoses associated with the absence of the ICA. Although it might be another significant findings, we could not pursue a detailed evaluation. Evaluation of the carotid canal with skull base CT is valuable in differentiating congenital absence from acquired occlusion of the ICA. The absence or hypoplasia of the carotid canal suggests congenital anomalies [2]. In contrast to steno-occlusive lesions, patients with congenital absence of the ICA are usually asymptomatic for long periods due to sufficient collateral circulation. However, aneurysm and vascular compression, such as trigeminal neuralgia-enlarged collaterals, have been reported [1, 2]. Thus, even in asymptomatic patients, clinical and radiological follow-ups are needed.

Conclusions

We report a rare case of a well-preserved PTA serving as a collateral pathway to the distal ICA territory associated with segmental agenesis of the ipsilateral ICA. In such cases, clinical and radiological follow-ups are needed.

Abbreviations

CCA:

Common carotid artery

CT:

Computed tomography

ICA:

Internal carotid artery

PTA:

Primitive trigeminal artery

VA:

Vertebral artery

Declarations

Availability of data and materials

The manuscript has no associated data or the data will not be deposited.

Authors’ contributions

KH designed the study and wrote the initial draft of the manuscript. AH contributed to the analysis and interpretation of the data and assisted in the preparation of the manuscript. All other authors critically reviewed the manuscript. All authors approved the final version of the manuscript and agreed to be accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Consent for publication

Written informed consent was obtained from the patient for publication of this case report and accompanying images.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Neurosurgery, Kumamoto University, Kumamoto, Japan
(2)
Department of Neurosurgery, Tokuda Neurosurgical Hospital, Kanoya, Japan

References

  1. Fukuda M, Kameyama S, Takahashi H, Tanaka R. Trigeminal neuralagia caused by the vertebral artery associated with primitive trigeminal artery and agenesis of the internal carotid artery: case report. Neurol Med Chir (Tokyo). 1998;38:367–70.View ArticleGoogle Scholar
  2. Given CA, Huang-Hellinger F, Baker MD, Chepuri NB, Morris PP. Congenital absence of the internal carotid artery: case reports and review of the collateral circulation. Am J Neuroradiol. 2001;22:1953–9.PubMedGoogle Scholar
  3. Hattori T, Kobayashi H, Inoue S, Sakai N. Persistent primitive trigeminal artery associated with absence of internal carotid artery. Surg Neurol. 1998;50:352–5.View ArticlePubMedGoogle Scholar
  4. Lasjaunias P, Berenstein A, Ter Brugge KG. General introduction: vascular anatomy and biological processes. In: Lasjaunias P, Berenstein A, Ter Brugge KG, editors. Surgical Neuroangiography, vol. 1. 2nd ed. Berlin: Springer-Verlag; 2001. p. 1–27.Google Scholar
  5. Lasjaunias P, Berenstein A, Ter Brugge KG. The skull base and extradural arteries: the trigeminal artery. In: Lasjaunias P, Berenstein A, Ter Brugge KG, editors. Surgical neuroangiography, vol. 1. 2nd ed. Berlin: Springer-Verlag; 2001. p. 396–8.Google Scholar
  6. Lasjaunias P, Santoyo-Vazquez A. Segmental agenesis of the internal carotid artery: angiographic aspects with embryological discussion. Anat Clin. 1984;6:133–41.View ArticlePubMedGoogle Scholar
  7. Lee JH, Oh CW, Lee SH, Han DH. Aplasia of the internal carotid artery. Acta Neurochir. 2003;145:117–25.View ArticlePubMedGoogle Scholar
  8. Tanaka Y, Hara H, Momose G, Kobayashi S, Kobayashi S, Sugita K. Proatlantal intersegmental artery and trigeminal artery associated with an aneurysm. J Neurosurg. 1983;59:520–3.View ArticlePubMedGoogle Scholar
  9. Uchino A, Saito N, Inoue K. Type 2 proatlantal intersegmental artery associated with persistent trigeminal artery diagnosed by MR angiography. Surg Radiol Anat. 2011;34(8):773–6.View ArticlePubMedGoogle Scholar
